SKID LPG STATION
Complex solution
If you are a business representative and have a large fleet of cars, we offer a complex solution consisting in converting a fleet of vehicles (passenger cars, delivery vans, trucks, etc.) or part of it to be powered by cheaper and more ecological LPG and providing your own LPG refueling station to service this fleet in customer place.

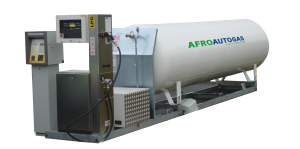

Skid LPG Station

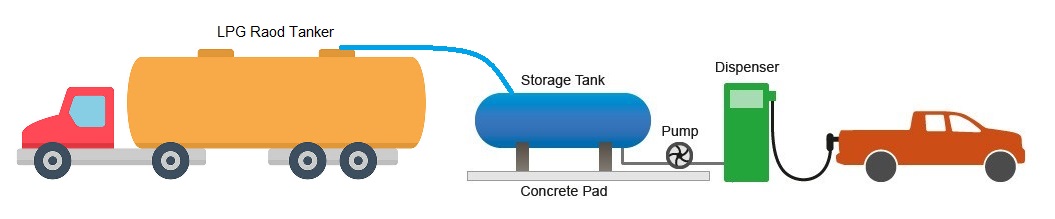

LPG filling skid station is a compact, low-cost infrastructure solution to fill LPG to cars or cylinders. It meets the standars for traditional fuel filling stations. Refuelling is done in the same way as traditional fuels. The time of refuelling depends on type of dispenser.

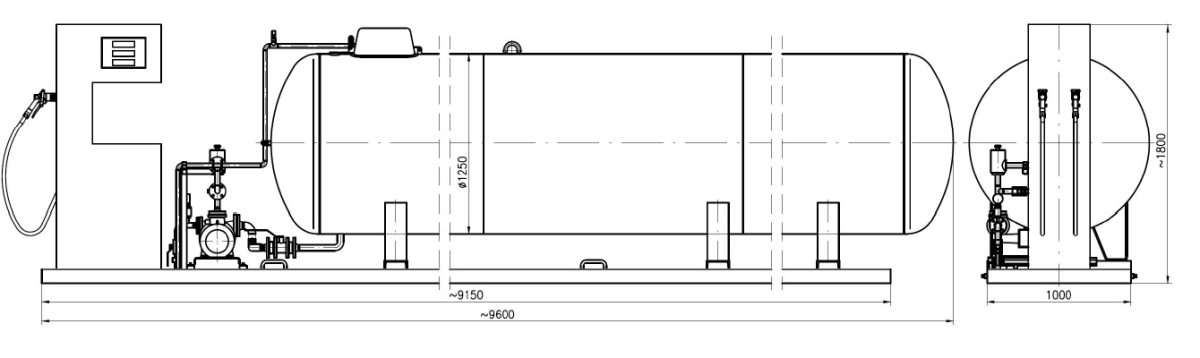

Skid LPG Station consists of combinations of the following items.
- Aboveground LPG tank V=9 200 L DN 25
- EBSRAY pump unit - RC20 or RC25
- LPG Dispenser SINGLE or DUPLEX (two filing connectors/guns)
- Complete filling station gas installation with fittings, by-pass alves, ball valves, hydrostatic valves, breakaway couplings
- Galvanized steel base frame
- Module pre-assembled at producer
- Manufacturer Data book – 2 sets
- Loading and protection for transport into 40ft OT container
